CP063
Image Gallery
CONCEPT PRODUCTS

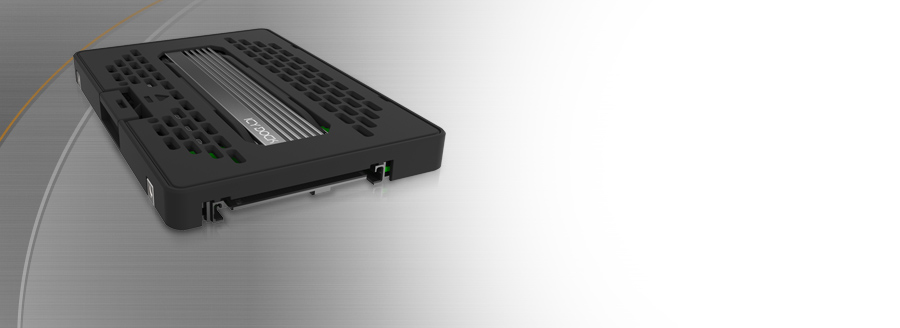

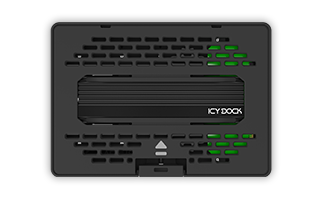

CP063 is a M.2 NVMe PCIe SSD converter that allows a m.2 NVMe SSD to be used in a space where U.2 drives could be used, such as enterprise systems and datacenters. The converter allows the usage of a heatsink along with thermal pads, to provide proper cooling for M.2 NVMe SSDs, as these types of SSDs are known for high in use temperatures with their high transfer rates. Drives are easily changed with the top cover latch tool-less design and there is no need for tools to secure the M.2 drive in the converter, making drive swaps and replacements effortless.


Key Features

*
Tool-less M.2 NVMe SSD installation design
*
Usage of a heatsink along with thermal pads to provide proper cooling
*
Supports hot-swap (host requires U.2 connector)
*
Supports PCIe Gen 3.0 x4 transfer speed up to 32Gbps
*
Supports 1 x U.2 SFF-8639
*
Exact same form factor & dimension as U.2 SSD
*
Eliminates the cost of purchasing expensive U.2 SSD
Specifications

Model Number :
CP063
Color :
Black
Host Interface :
1 x U.2 SFF-8639
Drive Fit :
1 x M.2 NVMe SSD (2230 / 2242 / 2250 / 2280)
Device Fit :
2.5" U.2 form factor
Maximum Transfer Rate :
Depending on hard drive speed
PCIe Gen 3.0 x 4 up to 32Gbps
Power Input :
1 x U.2 SFF-8639
Hot Swap :
Yes
Structure :
Plastic
Package Content :
Device, User Manual, Screws
Dimension (W x H x D) :
70mm x 9.5mm x 100mm
Weight :
100g(TBD)

3 Years Warranty
