CP016
Image Gallery
CONCEPT PRODUCTS

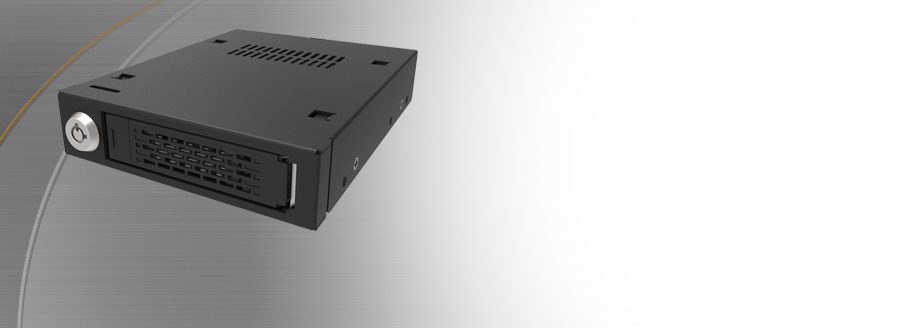

The Next Generation NVMe Mobile Rack


The MB601VK-B is ICY DOCK’s next generation PCI-E based mobile rack with ability in supporting Intel, Micron, and Seagate ultra high speed 2.5” U.2 NVMe solid-state-disk in an external 3.5” floppy drive bay.

Superior Performance



Build with the next generation U.2 interface, MB601VK-B offers up to 32Gb/s of bandwidth and supports 2.5” U.2 NVMe SSD, SAS and SATA interface 2.5” solid state drives or hard drives. The superior performance of MB601VK-B providing the maximum amount of transfer speed for the most data intense tasks such as real time large database transfers and refreshes, massive bulk data swaps from multiple networks, VMware and computers, and large scale editing of large multimedia assets of virtual reality, video, music, and other graphics with multiple workstations.



*Note: NVMe U.2 host is required to accept NVMe, SAS or SATA drives.



Convenient Utility & Accessibility



The EZ Slide Mini trays supports U.2 hot-swap feature, which makes U.2 NVMe SSD interchangeability and maintenance completely hassle-free. With a simple swap of the SSD / HDD, your overall down time is greatly reduced especially if this occurs when it is time sensitive. The tray is also designed to accommodate 7 to 15mm height hard drive and SSD, creating a 2.5" hot swap bay for U.2 NVMe SSD or any standard SAS / SATA hard drives and SSDs. While the tray is not installed to the MB991IK-B, the Anti-Dust Flap feature helps prevent dust from entering into the mobile rack.

The front of the MB601VK-B includes a status LED when the drive is powered on, off and accessed. Active Power Technology (APT) allows the status LED to be on only when a hard drive is inserted into the enclosure. For drive security, the eagle-hook lock system on the tray makes sure your hard drives will not eject when not needed. Additionally, the 2 segment key lock provides extra protection to theft of hard drives as well as safeguards any sensitive data.



Full Metal Protection



Making sure that the material used is designed in a way where it can be relied upon for many years after its deployment. The MB601VK-B is capable of holding up in the harshest environments, with the heavy duty metal construction throughout the entire device. With the Full Metal design, the ToughArmor is perfect for industrial, military and medical devices that may require a flammability rating as the full metal material is considered to already comply with flammability requirements.


Key Features

*
Fits 1 x 2.5” U.2 NVMe SSD or 2.5" SAS / SATA SSD / HDD
(NVMe U.2 host is required to accept NVMe SSD, SAS or SATA SSD / HDD)
*
Fits any external 3.5” drive bay or floppy bay
*
Supports NVMe 32Gb/s transfer rate
*
Accommodates 2.5" SSD with 7mm, 9mm, 12.5mm & 15mm Height
*
Active Power Technology (APT) - only powers up if there is drive installed in the drive bay
*
Anti-Vibration Technology (AVT) - creates a safe environment for hard drives or SSDs
*
EMI Grounding – protects hard drives from electrical damage
* Eagle-hook lock system & 2-segment safeguard key lock keeps drives secure within the enclosure
* Heavy Duty Full Metal construction, perfect for enterprise applications
* Drive tray is compatible with ToughArmor MB991SK-B, MB991IK-B, MB994SP-4S, MB994SP-4SB-1, MB994SK- 1B, MB994IPO-3SB and MB991U3-1SB *SAS / SATA SSD/ HDD only
3 Years Warranty
Model Number :
CP016
Color :
Black
Host Interface :
U.2 (SFF-8639)
Drive Fit :
NVMe / SAS / SATA SSD
NVMe U.2 host is required to accept NVMe, SAS or SATA drive
Device Fit :
1 x external 3.5” drive bay
Maximum Transfer Rate
(Depending on drive speed) :
NVMe - Up to 32Gbps (Depending on drive speed)
Power Input :
via U.2 (SFF-8639)
Structure :
Full Metal
Drive Cooling :
Metal heat dissipation
Drive Security :
2-Segment key lock
HDD Access Indicator :
Device power : Solid green
Drive activity : Flashing green
Hot Swap :
Yes
Dimension (L x W x H) :
161.2 x 101.2 x 25.4mm
